TE-CWO

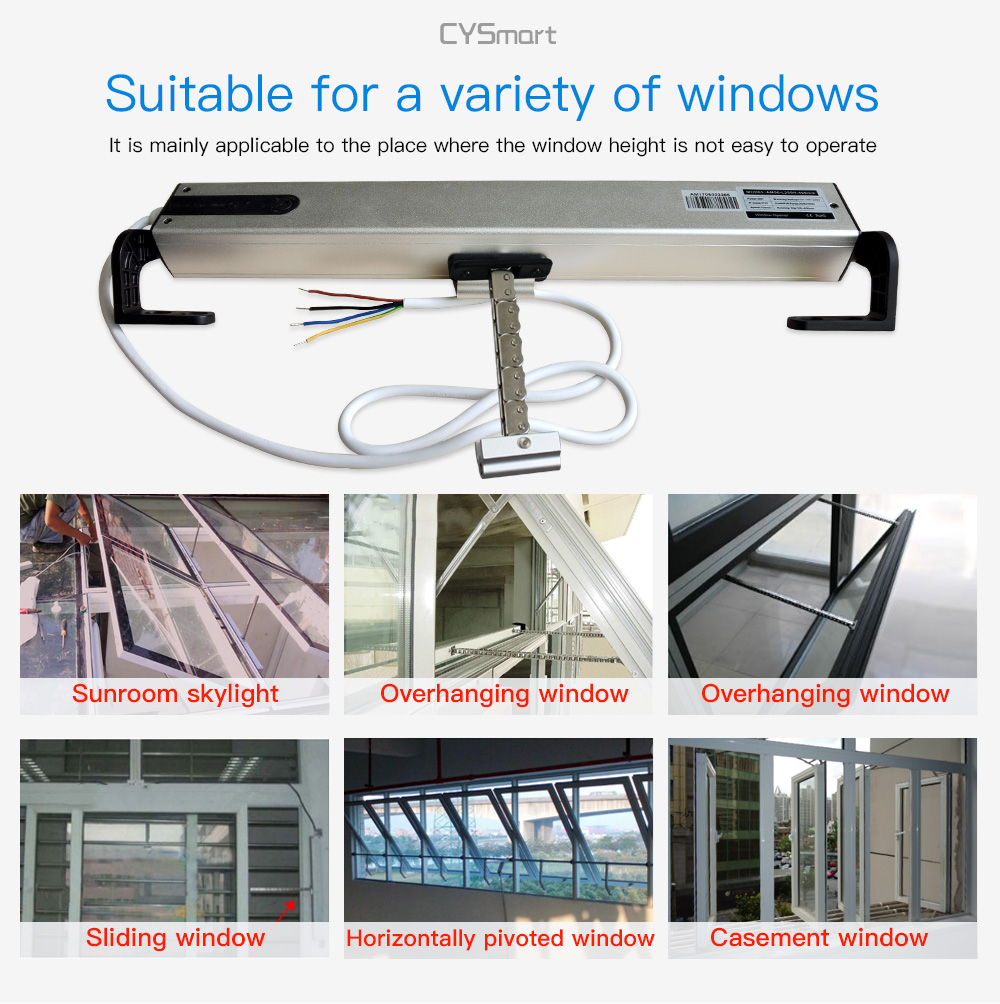

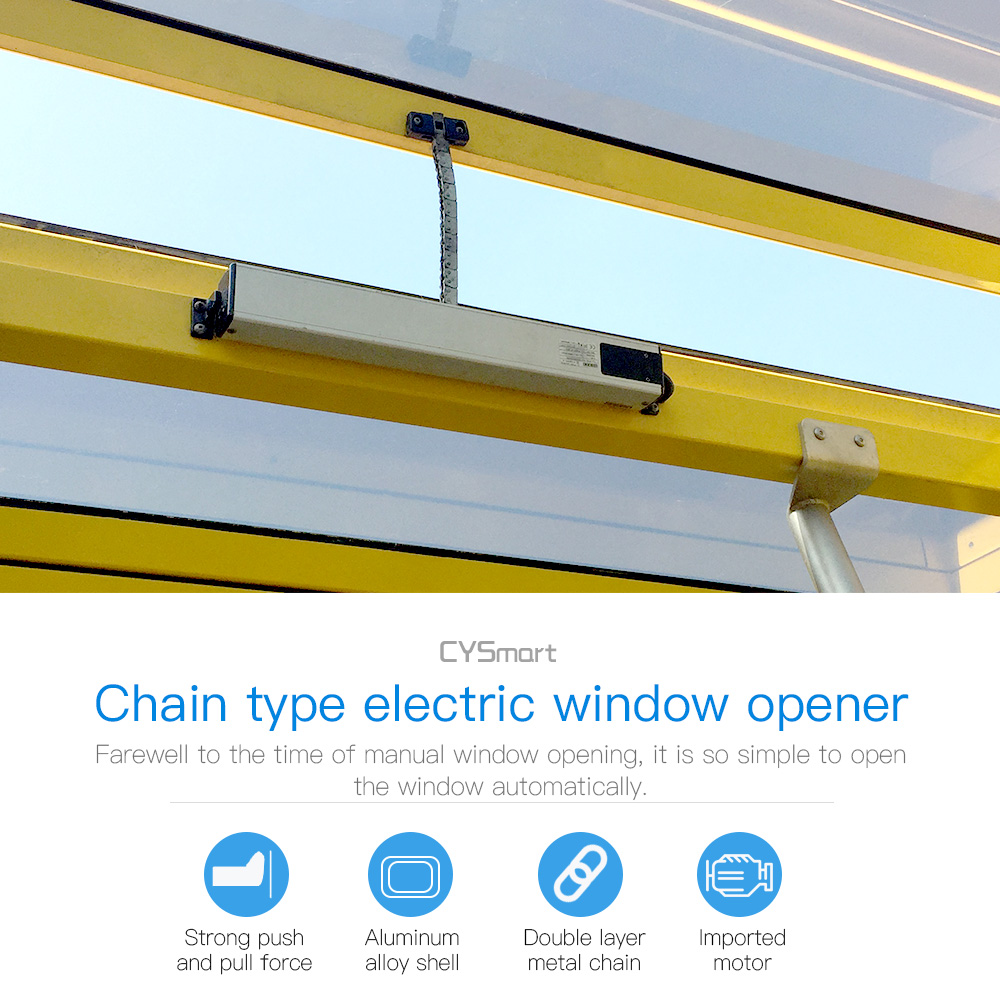

Chain Type Window Opener

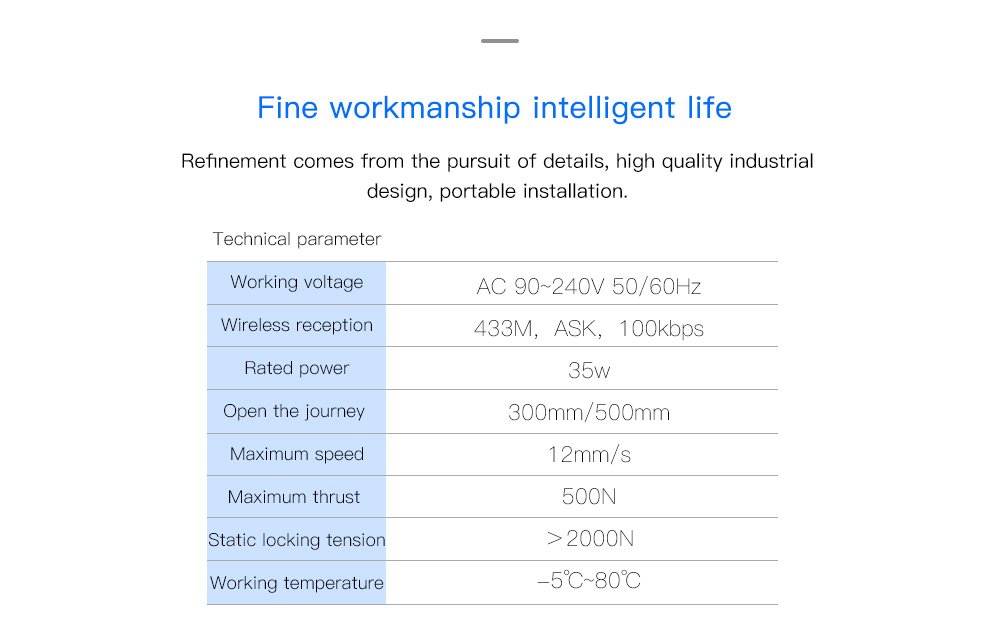

- Working Voltage:AC 90~240V
- Rated Power:35w
- Maximum thrust:500N
- Static Locking Tension:>2000N
- Rated torque:80N-CM
- Open The Journey:300mm/500mm
- Maximum speed:15mm/s
- Closed Induction Distance：<2cm

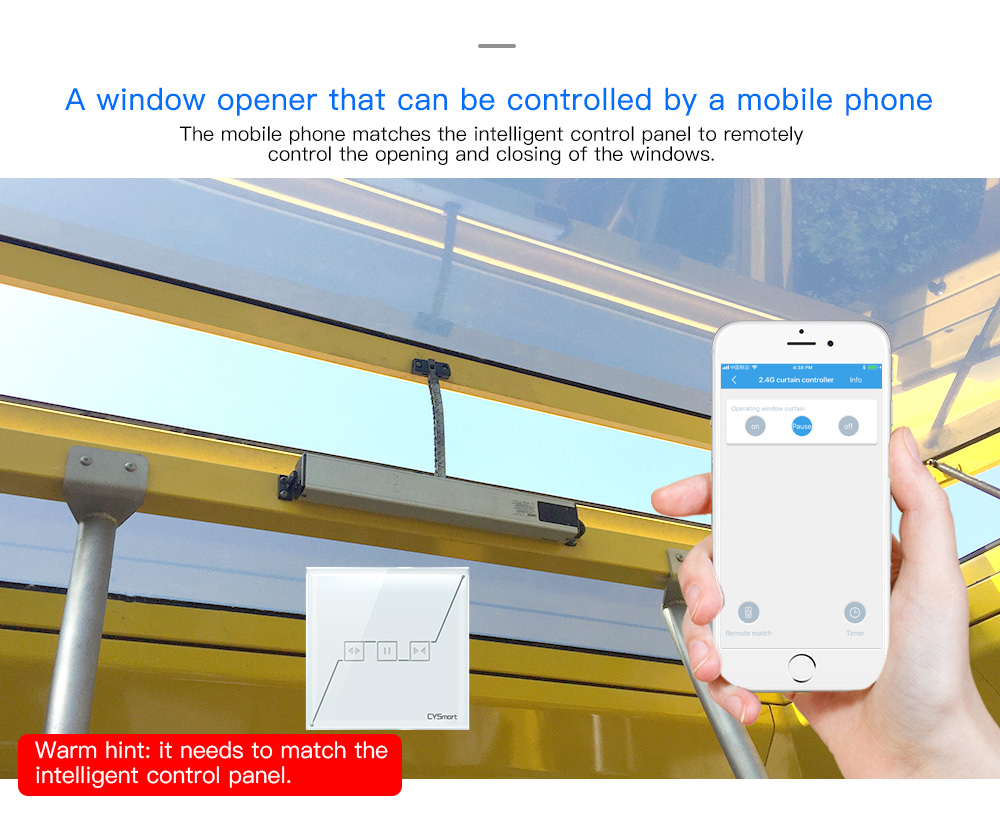

- Wireless Reception:433M,ASK,100kbps
- Protection grade：IP32
- Working Temperature:-5℃~80℃
